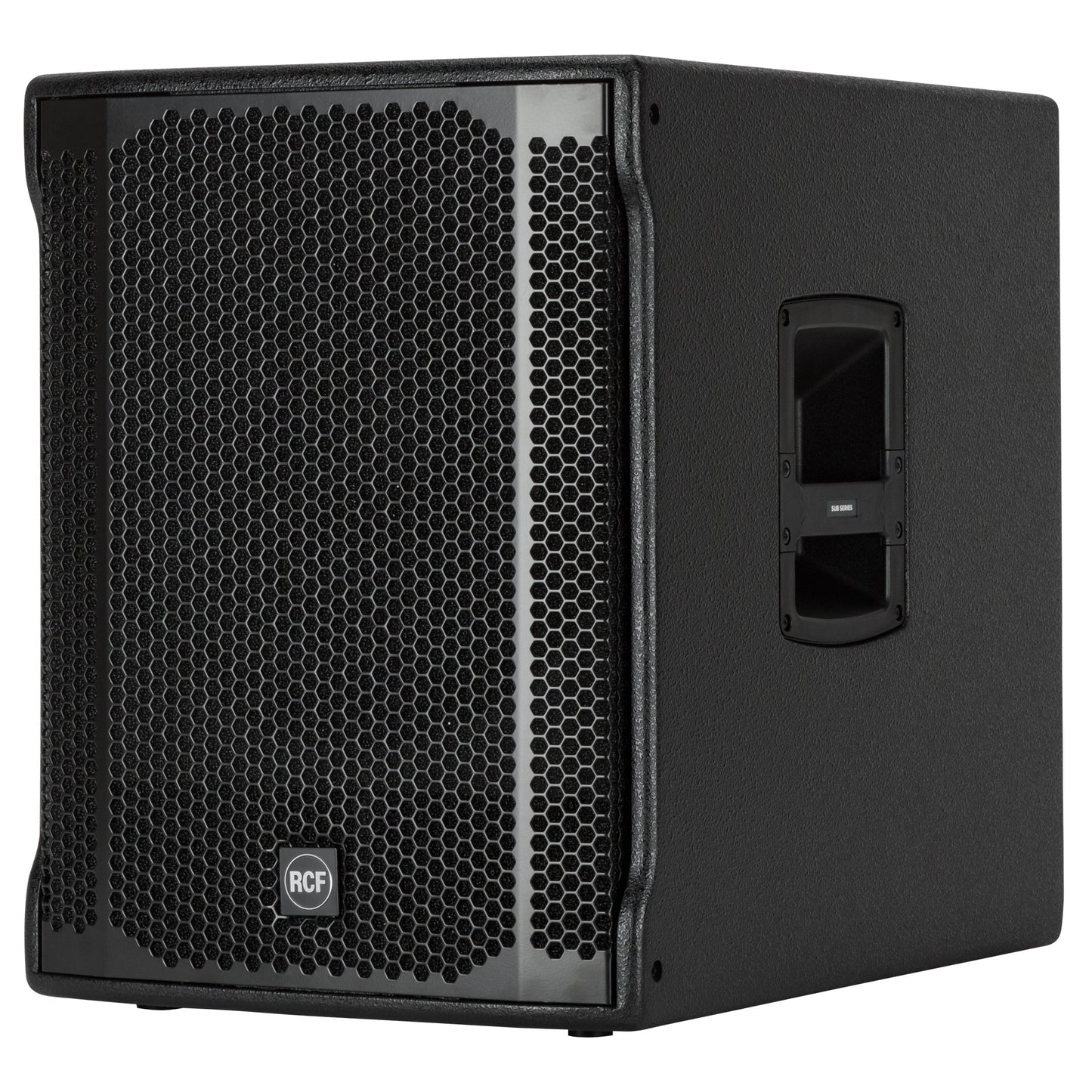

RCF SUB-705AS-MK2 Active 15" Powered Subwoofer

SKU: SUB-705AS-MK2
$1,099.00 inc. VAT
-21% $1,399.00 $1,099.00 inc. VAT
SUB 705-AS II
ACTIVE SUBWOOFER
  • 1400 WATT DIGITAL AMPLIFIER
  • 15" WOOFER, BASS REFLEX HOUSING
  • STEREO CROSSOVER
  • SWITCHABLE CROSSOVER FREQUENCIES
  • 1400 Watt Digital Amplifier
  • 15" Woofer, bass reflex housing
  • Stereo crossover
  • Switchable crossover frequencies
  • Phase-reverse switch
  • Electronic equalization, soft limiter and protection
  • Stereo XLR input, Stereo XLR signal output
The SUB 705-AS II is a compact and powerful bass reflex subwoofer. It is equipped with a 15” high power woofer with 3” voice coil, powered by a 1400 Watt digital amplifier in a robust plywood housing with deep and punchy tuning for a powerful bass. Thanks to the built-in digital stereo crossover (DSP) with adjustable crossover frequency, it can be easily and quickly set up with a satellite speaker. The SUB 705-AS II easily combines with 12” and 15”, ideal for RCF ART and D-Line Series.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 120 Hz

MAX SPL @ 1M:
131 dB
Transducers
WOOFER:
15'', 3.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES:
110 Hz

LOW-PASS FREQUENCIES:
80 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, EQ, Phase, Xover
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

LOW FREQUENCIES:
1400 W Peak, 700 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HANDLES:
2 side

POLE MOUNT/CAP:
Yes

COLOR:
Black
Size
HEIGHT:
568 mm / 22.36 inches

WIDTH:
430 mm / 16.93 inches

DEPTH:
595 mm / 23.43 inches

WEIGHT:
28.6 kg / 63.05 lbs
Shipping informations
PACKAGE HEIGHT:
605 mm / 23.82 inches

PACKAGE WIDTH:
640 mm / 25.2 inches

PACKAGE DEPTH:
470 mm / 18.5 inches

PACKAGE WEIGHT:
32.4 kg / 71.43 lbs
