Home » RCF SUB-8003AS-MK2 Active 18" Powered Subwoofer
RCF

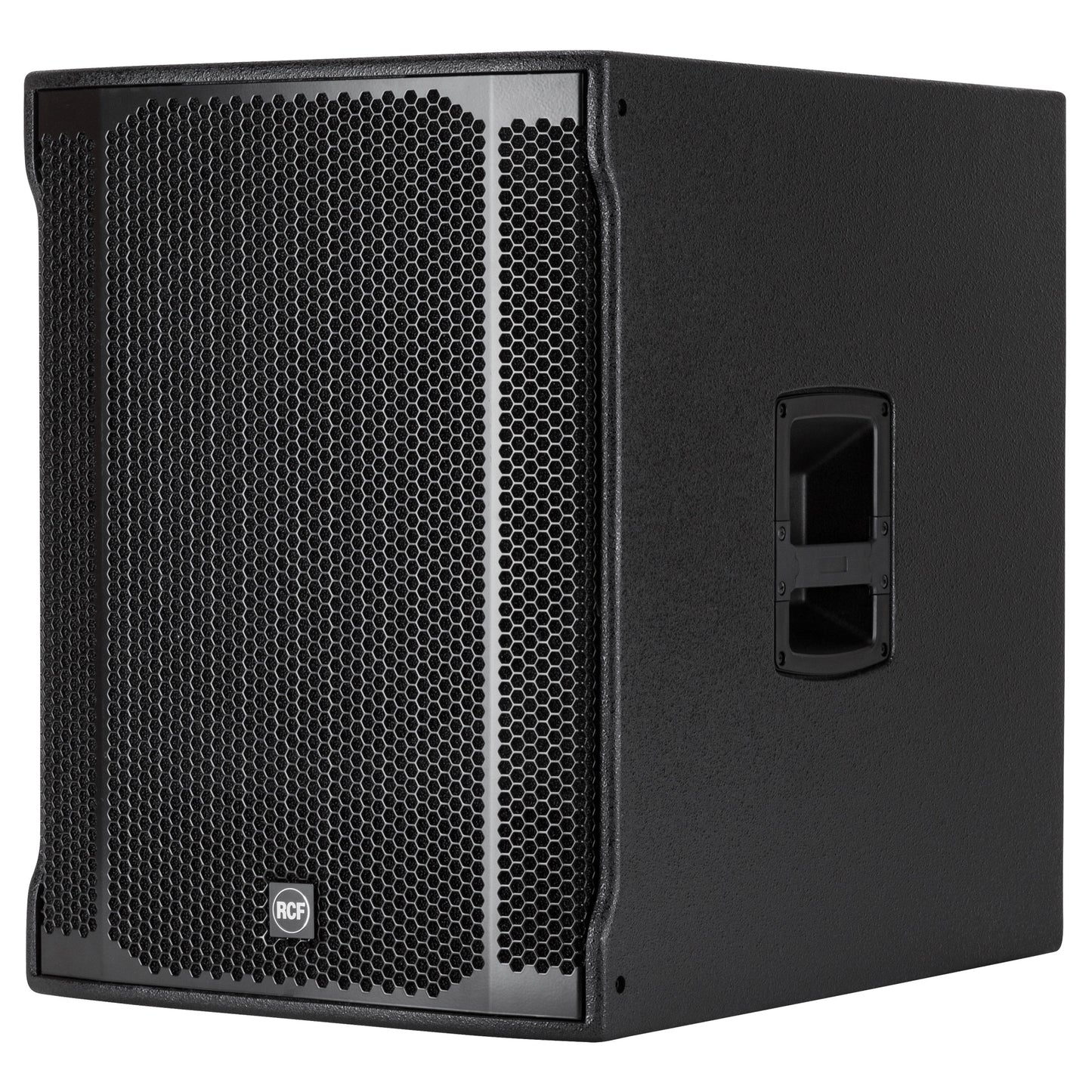

RCF SUB-8003AS-MK2 Active 18" Powered Subwoofer

SKU: SUB-8003AS-MK2
$2,199.00 inc. VAT
-15% $2,579.00 $2,199.00 inc. VAT
SUB 8003-AS II
ACTIVE SUBWOOFER
  • 2200 W
  • 18" WOOFER, 4.0" V.C.
  • 35 HZ - 120 HZ FREQUENCY RESPONSE
  • 135 DB MAX SPL
  • 2200 W
  • 135 dB max SPL
  • 35 Hz - 120 Hz frequency response
  • 18" Woofer, 4.0" v.c.
  • Selectable gain, X-over and delay
  • Birch tour grade cabinet
  • Stereo XLR input, Stereo XLR signal output
The SUB 8003-AS II active subwoofer features the latest generation of RCF woofer technology, digital amplifiers and DSP processing with higher power and enhanced performance. It offers the perfect blend of bass reproduction, high SPL and compact dimensions for mobile use by bands and DJs.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
35 Hz ÷ 120 Hz

MAX SPL @ 1M:
135 dB
Transducers
WOOFER:
18'', 4.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
Selectable

PROTECTIONS:
Thermal, RMS

CONTROLS:
Gain, EQ, Phase, Xover, Delay, Cardioid
Power section
TOTAL POWER:
2200 W Peak, 1100 W RMS

LOW FREQUENCIES:
2200 W Peak, 1100 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HANDLES:
2 side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
694 mm / 27.32 inches

WIDTH:
523 mm / 20.59 inches

DEPTH:
700 mm / 27.56 inches

WEIGHT:
45 kg / 99.21 lbs
Shipping informations
PACKAGE HEIGHT:
745 mm / 29.33 inches

PACKAGE WIDTH:
760 mm / 29.92 inches

PACKAGE DEPTH:
580 mm / 22.83 inches

PACKAGE WEIGHT:
51 kg / 112.44 lbs
