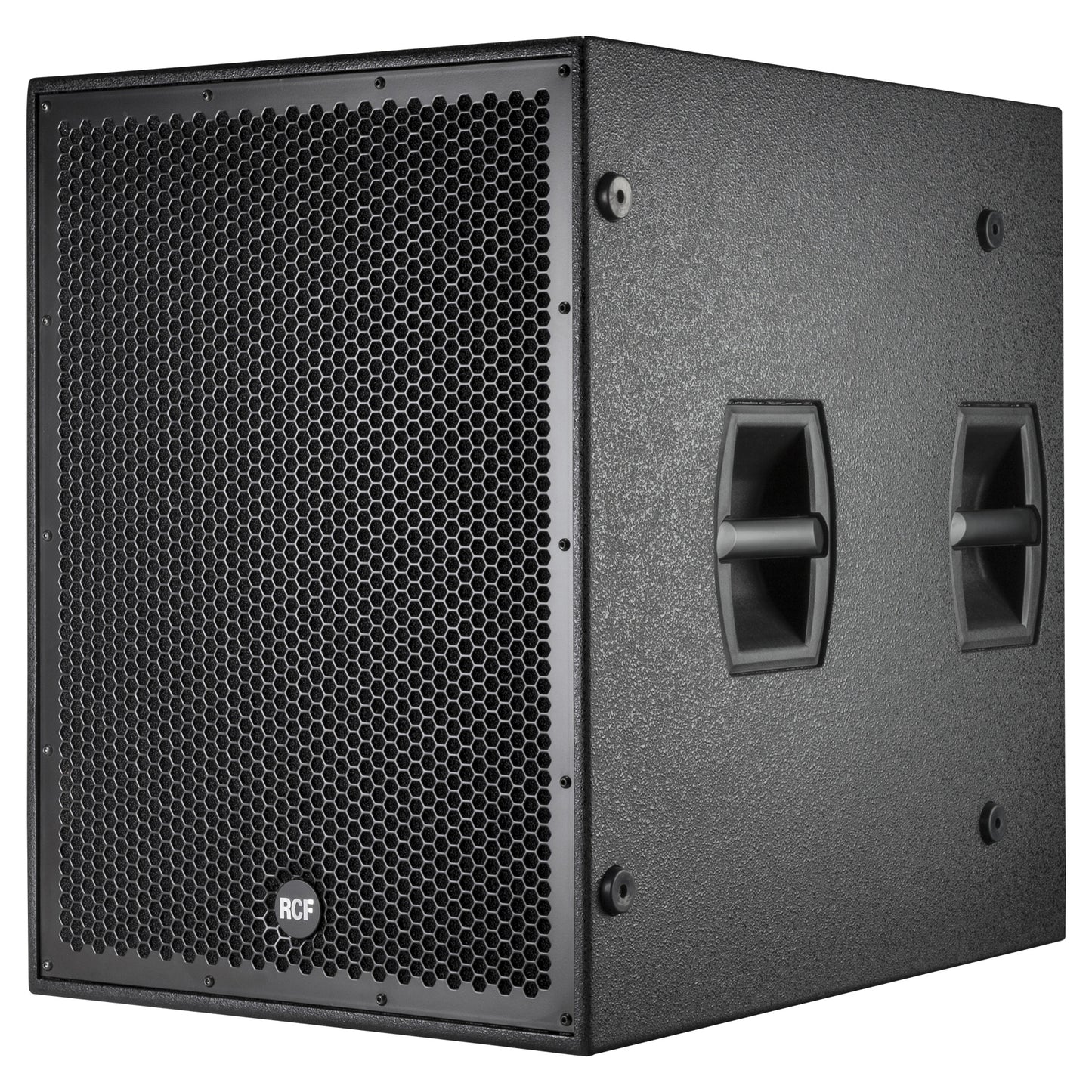

RCF SUB-8005AS Active 21" Powered Subwoofer

SKU: SUB-8005AS
$3,799.00 inc. VAT
-24% $4,999.00 $3,799.00 inc. VAT
SUB 8005-AS
ACTIVE HIGH POWER SUBWOOFER
  • 2500 WATT PEAK, 1250 WATT RMS
  • 21" WOOFER, 4.5" VOICE COIL VENTED WOOFER
  • 27 HZ - 120 HZ FREQUENCY RESPONSE
  • 137 DB MAX SPL
  • 2500 Watt Peak, 1250 Watt RMS
  • 137 dB max SPL
  • 27 Hz - 120 Hz frequency response
  • 21" Woofer, 4.5" voice coil vented woofer
  • DSP controlled Input section with selectable presets
  • Delay control
  • Baltic birch tour grade cabinet
  • Compatible with NXL23-A (stacking)
  • Compatible with NXL24-A (stacking)
  • Multiple configurations with HDL 10-A and HDL 20-A
The SUB 8005-AS is on of the most powerful 21” subwoofers in pro-sound category. Featuring a high power, hypervented 21” woofer, with 4.5” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8005-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
27 Hz ÷ 120 Hz

MAX SPL @ 1M:
137 dB
Transducers
WOOFER:
21'', 4.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES:
120 Hz

LOW-PASS FREQUENCIES:
90 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Fast Limiter

CONTROLS:
Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioi
Power section
TOTAL POWER:
2500 W Peak, 1250 W RMS

LOW FREQUENCIES:
2500 W Peak, 1250 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
2xM20, 4 x wheels mounting points

HANDLES:
2 side

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
825 mm / 32.48 inches

WIDTH:
600 mm / 23.62 inches

DEPTH:
805 mm / 31.69 inches

WEIGHT:
61.5 kg / 135.58 lbs
Shipping informations
PACKAGE HEIGHT:
870 mm / 34.25 inches

PACKAGE WIDTH:
880 mm / 34.65 inches

PACKAGE DEPTH:
662 mm / 26.06 inches

PACKAGE WEIGHT:
63 kg / 138.89 lbs
