RCF

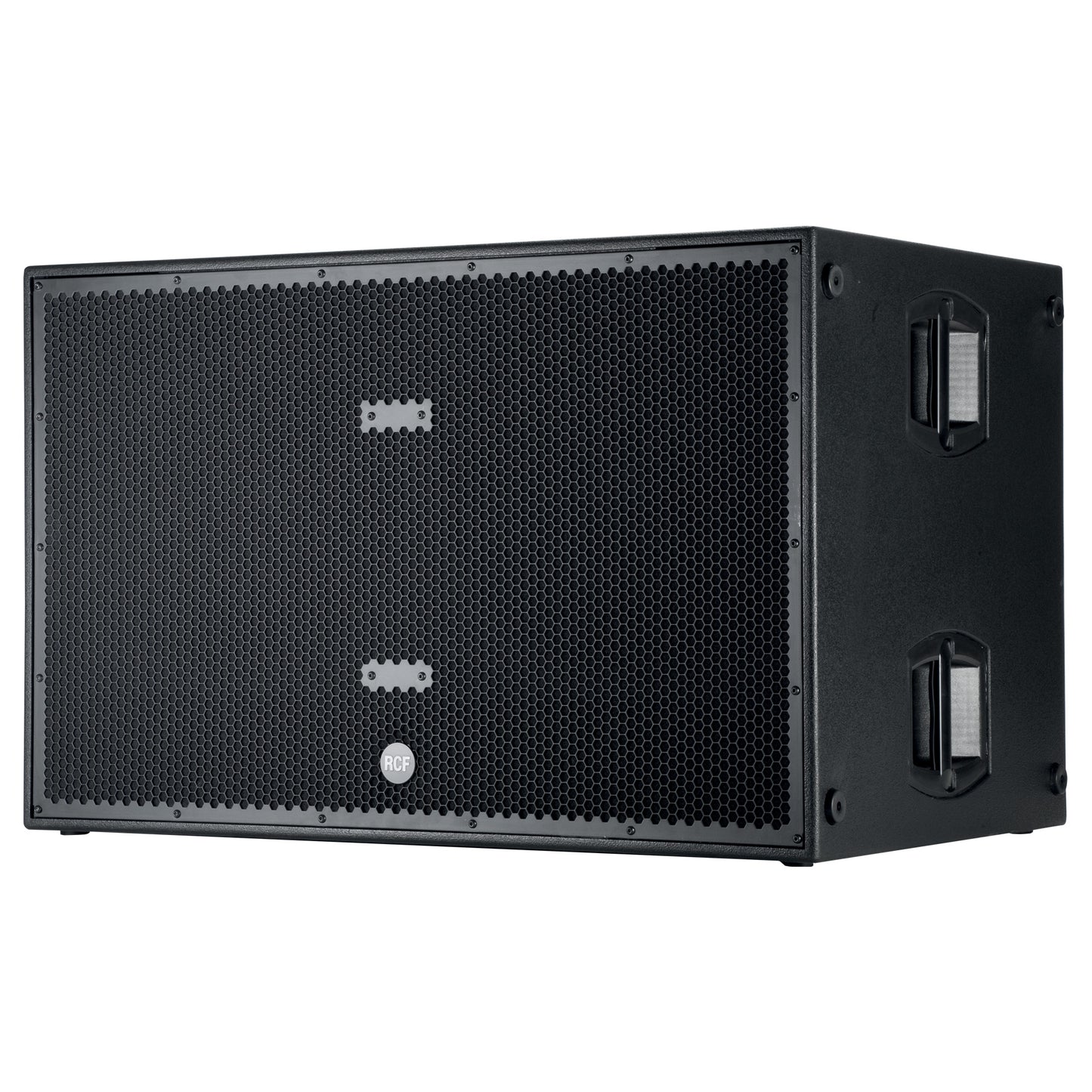

RCF SUB-8006-AS Active Dual 18" Powered Subwoofer

SKU: SUB-8006-AS
Regular price $4,999.00
Regular price -17% $5,999.00 Sale price $4,999.00
SUB 8006-AS
ACTIVE HIGH POWER SUBWOOFER
  • 5000 WATT PEAK POWER - 2500 WATT RMS
  • 2 X 18" WOOFER
  • 30 HZ - 120 HZ FREQUENCY RESPONSE
  • 137 DB MAX SPL
  • 5000 Watt Peak power - 2500 Watt RMS
  • 137 dB max SPL
  • 30 Hz - 120 Hz frequency response
  • 2 x 18" Woofer
  • DSP controlled Input section with selectable presets
  • Delay control
  • Integrated mechanics for multiple configuration with HDL 20-A
  • Baltic birch tour grade cabinet
The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series. Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
30 Hz ÷ 120 Hz

MAX SPL @ 1M:
137 dB
Transducers
WOOFER:
2 x 18'', 4.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES:
100 Hz

LOW-PASS FREQUENCIES:
80 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Fast Limiter

CONTROLS:
Xover, Phase switch, Depp/Punch, Output Delay Settings, Cardioi
Power section
TOTAL POWER:
5000 W Peak, 2500 W RMS

LOW FREQUENCIES:
5000 W Peak, 2500 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
Mounting points

HANDLES:
4 side

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
709 mm / 27.91 inches

WIDTH:
1109 mm / 43.66 inches

DEPTH:
700 mm / 27.56 inches

WEIGHT:
96.4 kg / 212.53 lbs
Shipping informations
PACKAGE HEIGHT:
763 mm / 30.04 inches

PACKAGE WIDTH:
1156 mm / 45.51 inches

PACKAGE DEPTH:
753 mm / 29.65 inches

PACKAGE WEIGHT:
109 kg / 240.3 lbs
