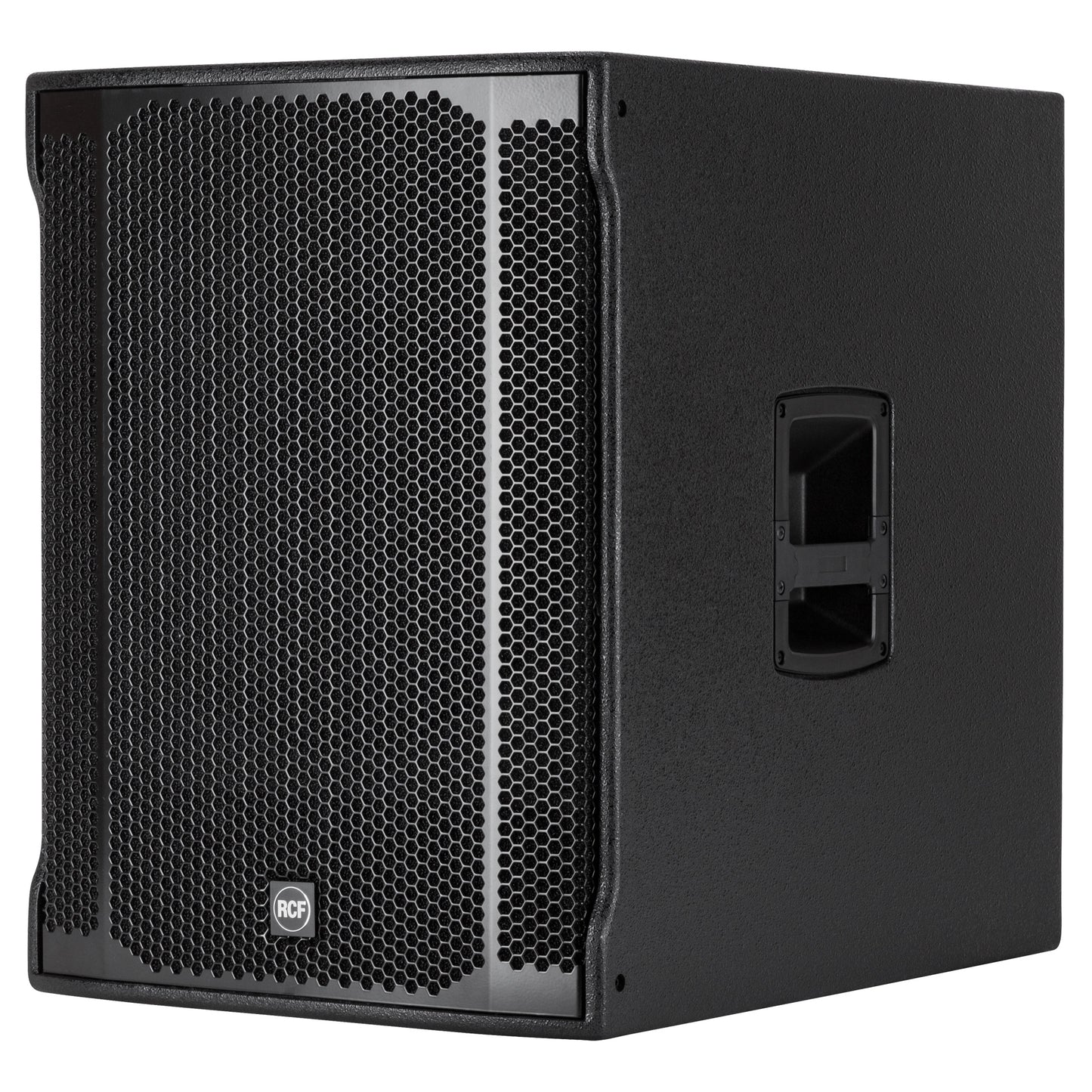

RCF SUB-905AS-MK2 Active 15" Powered Subwoofer

SKU: SUB-905AS-MK2
$1,899.00 inc. VAT
-22% $2,449.00 $1,899.00 inc. VAT
SUB 905-AS II
ACTIVE SUBWOOFER
  • 2200 W
  • 133 DB MAX SPL
  • 40 HZ - 120 HZ FREQUENCY RESPONSE
  • 15" WOOFER, 3.0" V.C
  • 2200 W
  • 133 dB max SPL
  • 40 Hz - 120 Hz frequency response
  • 15" Woofer, 3.0" v.c.
  • Selectable gain, X-over and delay
  • Birch tour grade cabinet
  • Stereo XLR input, Stereo XLR signal output
The SUB 905-AS II active subwoofer is ideal for building powerful subwoofer satellite systems where compactness and high sound levels are required at the same time. The SUB 905-AS has the most advanced RCF woofer technology, coupled with a powerful 2200 W digital amplifier. It offers the perfect blend of bass reproduction, high SPL and compact dimensions for mobile use by bands or DJs.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 120 Hz

MAX SPL @ 1M:
133 dB
Transducers
WOOFER:
15'', 3.0'' v.c
Input/Output section
INPUT CONNECTORS:
XRL Stereo

OUTPUT CONNECTORS:
XRL Stereo

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
Selectable

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Gain,EQ, phase, xover, delay, cardioid
Power section
TOTAL POWER:
2200 W Peak, 1100 W RMS

LOW FREQUENCIES:
2200 W Peak, 1100 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HANDLES:
2 Side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
600 mm / 23.62 inches

WIDTH:
445 mm / 17.52 inches

DEPTH:
610 mm / 24.02 inches

WEIGHT:
30.2 kg / 66.58 lbs
Shipping informations
PACKAGE HEIGHT:
650 mm / 25.59 inches

PACKAGE WIDTH:
670 mm / 26.38 inches

PACKAGE DEPTH:
500 mm / 19.69 inches

PACKAGE WEIGHT:
35 kg / 77.16 lbs
