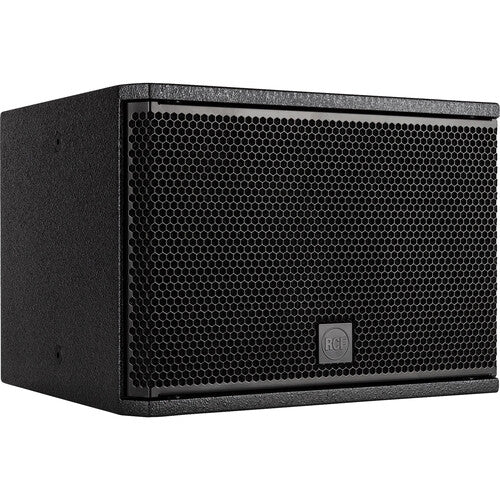

RCF SUB-S10 Passive 10" Bass Reflex Subwoofer

SKU: SUB-S10
$599.00 inc. VAT
-25% $799.00 $599.00 inc. VAT

Features at a Glance

  • 400W AES power handling (800W program / 1600W peak)
  • 124 dB max SPL
  • 50 to 200 Hz frequency range (-10 dB)
  • 10" high-power woofer
  • High-quality plywood cabinet
  • Steel front grille
  • M20 standard pole mount in the top section of the cabinet
  • 4-pole Euroblock connector (audio input and parallel link output)
RCF SUB-S10 Specs
Configuration Passive Subwoofer
Enclosure Type Subwoofer
Total Power Capacity 1600 W Peak
800 W Program
400 W RMS
Constant Voltage / Transformer Taps None
System Impedance 8 Ohms (Nominal)
Drivers
HF Driver None
MF Driver None
LF Driver 1 x 10" / 25.4 cm Woofer
LF Voice Coil 2.5" / 6.3 cm
Performance
Frequency Range 50 Hz to 200 Hz -10 dB
Maximum SPL 124 dB
Speaker Sensitivity 92 dB
Connectivity
Audio I/O 1 x Euroblock 4-Pin Unbalanced Speaker Input/Output
Signal Processing
Filters None
Phase Adjustment None
Physical
Mounting 12 x M10
1 x M20 Pole Socket (Top)
Handles None
Construction Material Metal Grille, Plywood
Certifications CE, as per Manufacturer
Dimensions 17.7 x 14.2 x 12.5" / 45 x 36 x 31.8 cm
Weight 43.2 lb / 19.6 kg
