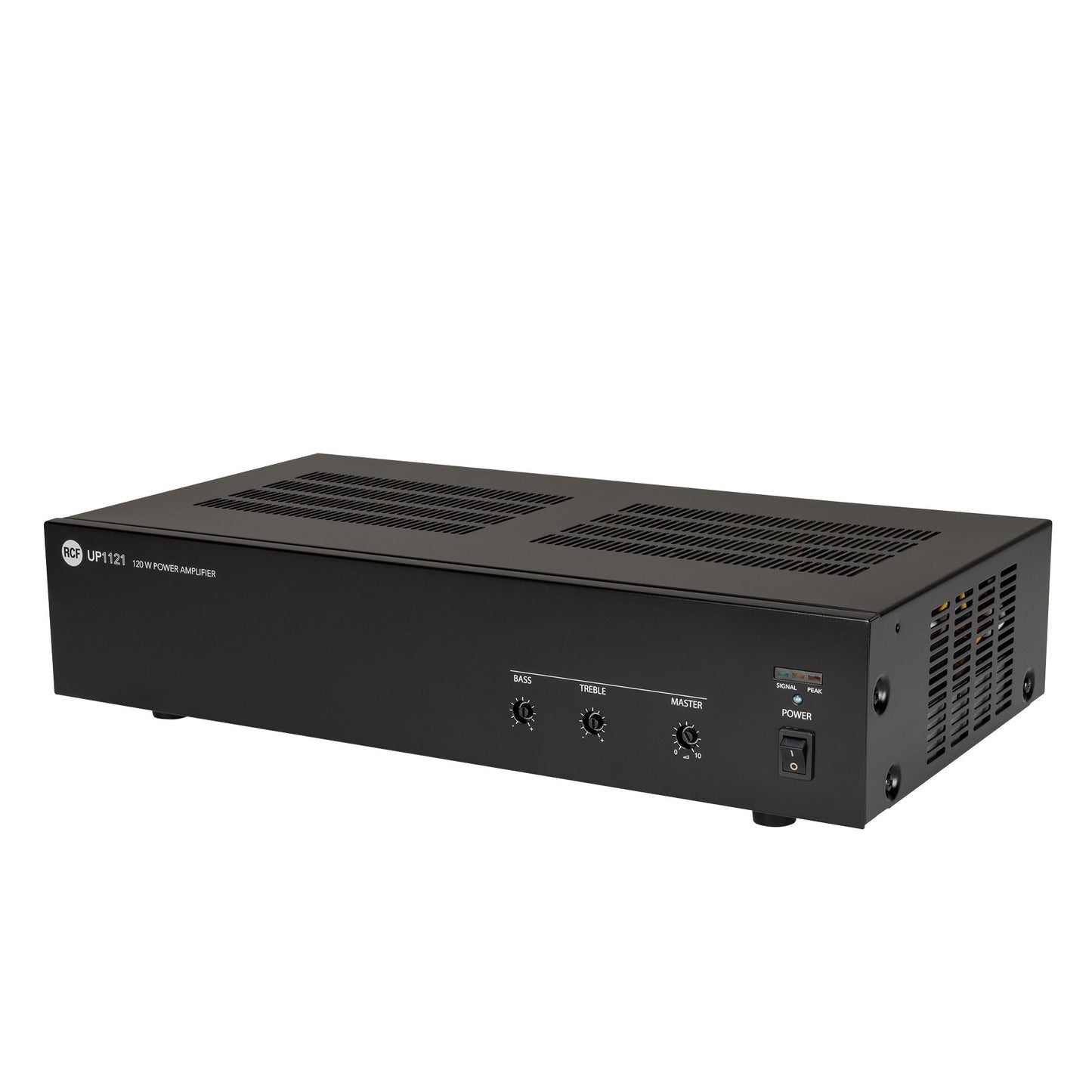

RCF UP-1121 Power Amplifier (70V/4 ohm/24V DC Voltage)

SKU: UP-1121
$499.00 inc. VAT
-19% $619.00 $499.00 inc. VAT
UP 1121
POWER AMPLIFIER
  • 120 W POWER AMPLIFIER
  • SUITABLE FOR THE DISTRIBUTION OF MUSIC AND ANNOUNCEMENTS
  • MAIN BALANCED INPUT ON REMOVABLE CONNECTOR
  • AMPLIFIER OUTPUT AVAILABLE BOTH FOR 100 / 70 V CONSTANT VOLTAGE LINES AND LOW IMPEDANCE LOUDSPEAKERS (MIN. 4 O)
  • 120 W power amplifier
  • Suitable for the distribution of music and announcements
  • Main balanced input on removable connector
  • Amplifier output available both for 100 / 70 V constant voltage lines and low impedance loudspeakers (min. 4 O)
  • Input for the secondary 24 V DC power supply
  • MASTER volume and tones BASS and TREBLE control on front panel
  • Main power plug with fuse
  • Main power voltage selector 230V / 115V
  • LEDs indicating audio signal level on front panel
UP 1121 is a 120 W power amplifier having a single balanced ‘line’ level audio input. The amplifier output is available either for low impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line (for loudspeakers having 100 – 70 V transformers). In addition to the connection to the mains, it can also be powered by batteries (voltage: 24 V dc), in order to ensure its proper operation even when the mains supply is unavailable.
SPECIFICATIONS
Amplifier specifications
POWER OUTPUT PER CHANNEL (@ 4 OHM):
120 W RMS

POWER OUTPUT (HI-Z):
120 W RMS

FREQUENCY RESPONSE (-3DB):
60 Hz ÷ 15 kHz

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<1.5 %
Input section
BALANCED:
1

LINE CONNECTORS:
Euroblock

LINE INPUTS:
1

MONO:
1

TOTAL NUMBER OF INPUTS:
1
Output section
POWER OUTPUT CONNECTORS:
Euroblock
Processing
TONE CONTROLS:
Yes
Controls
CONFIGURATION:
Front panel
Protections
COOLING:
Convection

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60Hz

VOLTAGE SELECTION:
External

DC POWER:
Yes

DC POWER VALUE:
24 V

POWER CONSUMPTION:
350 W
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
19", 1U
Size
DEPTH:
385 mm / 15.16 inches

HEIGHT:
88 mm / 3.46 inches

WEIGHT:
7.1 kg / 15.65 lbs

WIDTH:
431 mm / 16.97 inches
Shipping informations
PACKAGE DEPTH:
380 mm / 14.96 inches

PACKAGE HEIGHT:
165 mm / 6.5 inches

PACKAGE WEIGHT:
8.4 kg / 18.52 lbs

PACKAGE WIDTH:
500 mm / 19.69 inches
