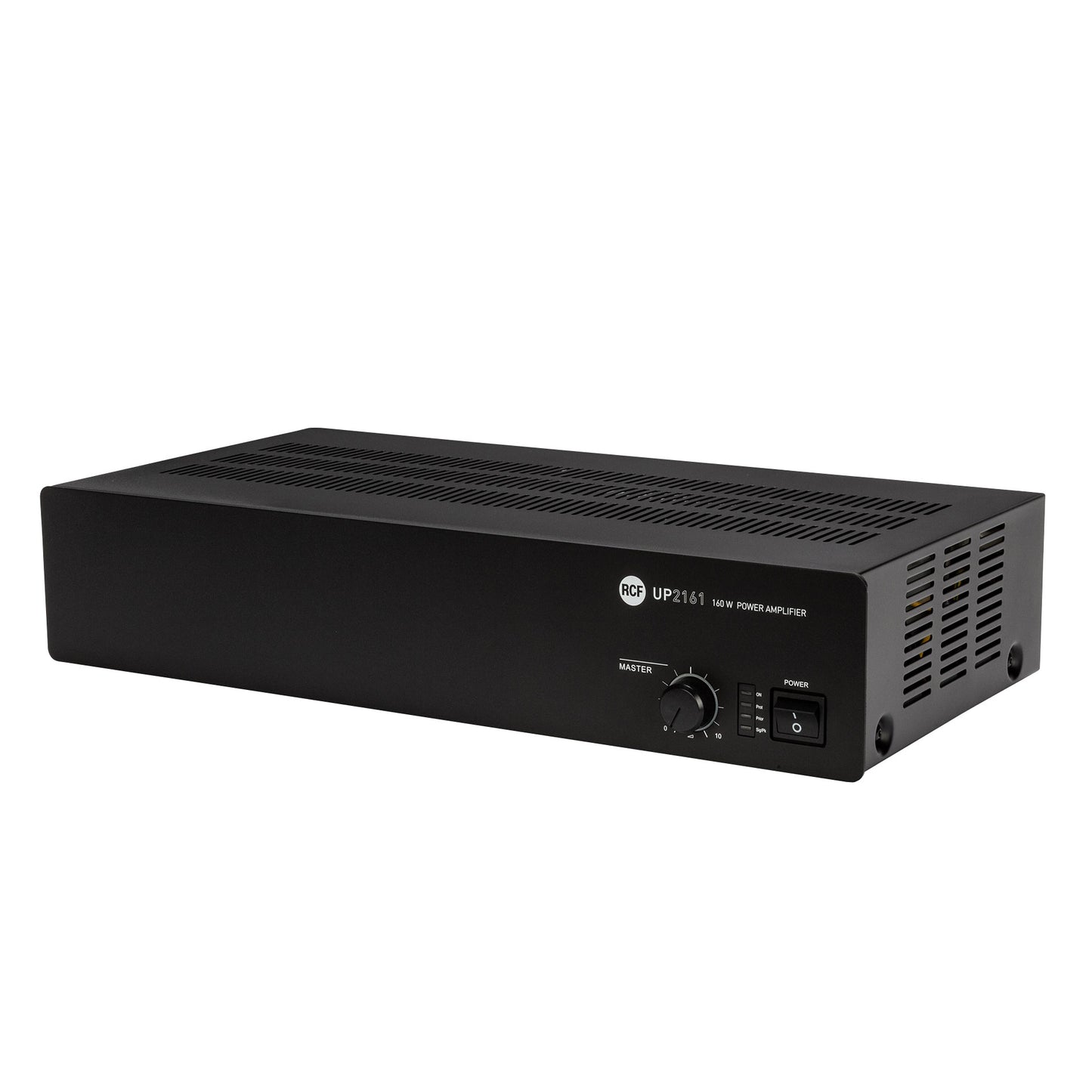

RCF UP-2161 Power Amplifier (70V/4 ohm/ Aux Input)

SKU: UP-2161
$749.00 inc. VAT
-21% $949.00 $749.00 inc. VAT

UP 2161
POWER AMPLIFIER
  • FULL DIGITAL TECHNOLOGY POWER AMPLIFIER 160 W RMS
  • MAIN INPUT ON EITHER REMOVABLE CONNECTOR OR XLR OR RJ 45
  • MAIN INPUT CAN HAVE PRIORITY OVER THE AUX INPUT
  • MAIN INPUT HAS A PRESENCE CONTROL COMMAND
  • Full digital technology Power Amplifier 160 W RMS
  • Main input on either removable connector or XLR or RJ 45
  • Main Input can have priority over the Aux Input
  • Main Input has a presence control command
  • Main Input has a high-pass filter useful for improving speech intelligibility
  • Aux Input for music sources on RCA type connector
  • 100 V - 70 V and 4 Ohm outputs
  • Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)
UP 2161 is a 160 W power amplifier designed for the transmission of announcements and musical programmes. The amplifier is equipped with a (mic / line) Main Input on either removable connector or XLR or RJ 45 and an Auxiliary Input for music sources (e.g. CD players, tuners, etc.). The amplifier output is available either for low impedance loudspeakers or 100 – 70 V constant voltage line. The amplifier is Class D with switching power supply; the overall weight is extremely reduced plus it offers a wide audio bandwidth quality.
SPECIFICATIONS
Amplifier specifications
NUMBER OF CHANNELS:
1

POWER OUTPUT PER CHANNEL (@ 4 OHM):
160 W RMS

POWER OUTPUT (HI-Z):
160 W RMS

FREQUENCY RESPONSE (-3DB):
50 Hz ÷ 14 kHz

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.3 %
Input section
BALANCED:
3

GENERAL PURPOSE INPUTS (GPI):
1

LINE CONNECTORS:
RCA

LINE INPUTS:
1

MIC+LINE CONNECTORS:
Euroblock, XLR

MIC+LINE INPUTS:
1

MIC+LINE PHANTOM:
32 V DC

VOX: (MIC+LINE):
Yes

MONO:
3

PAGING COMMAND:
Contact

PAGING CONNECTORS:
RJ45

PAGING INPUTS:
1

TOTAL NUMBER OF INPUTS:
3

UNBALANCED:
2
Output section
POWER OUTPUT CONNECTORS:
Euroblock
Processing
TONE CONTROLS:
Yes

HIGH-PASS FILTER:
150 Hz
Controls
CONFIGURATION:
DIP switch, Front panel

PRIORITY:
Yes
Protections
COOLING:
Convection

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60Hz

VOLTAGE SELECTION:
Internal

POWER CONSUMPTION:
350 W
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
19", 2U
Size
DEPTH:
230 mm / 9.06 inches

HEIGHT:
88 mm / 3.46 inches

WEIGHT:
5.3 kg / 11.68 lbs

WIDTH:
442 mm / 17.4 inches
Shipping informations
PACKAGE DEPTH:
500 mm / 19.69 inches

PACKAGE HEIGHT:
200 mm / 7.87 inches

PACKAGE WEIGHT:
6.38 kg / 14.07 lbs

PACKAGE WIDTH:
330 mm / 12.99 inches
