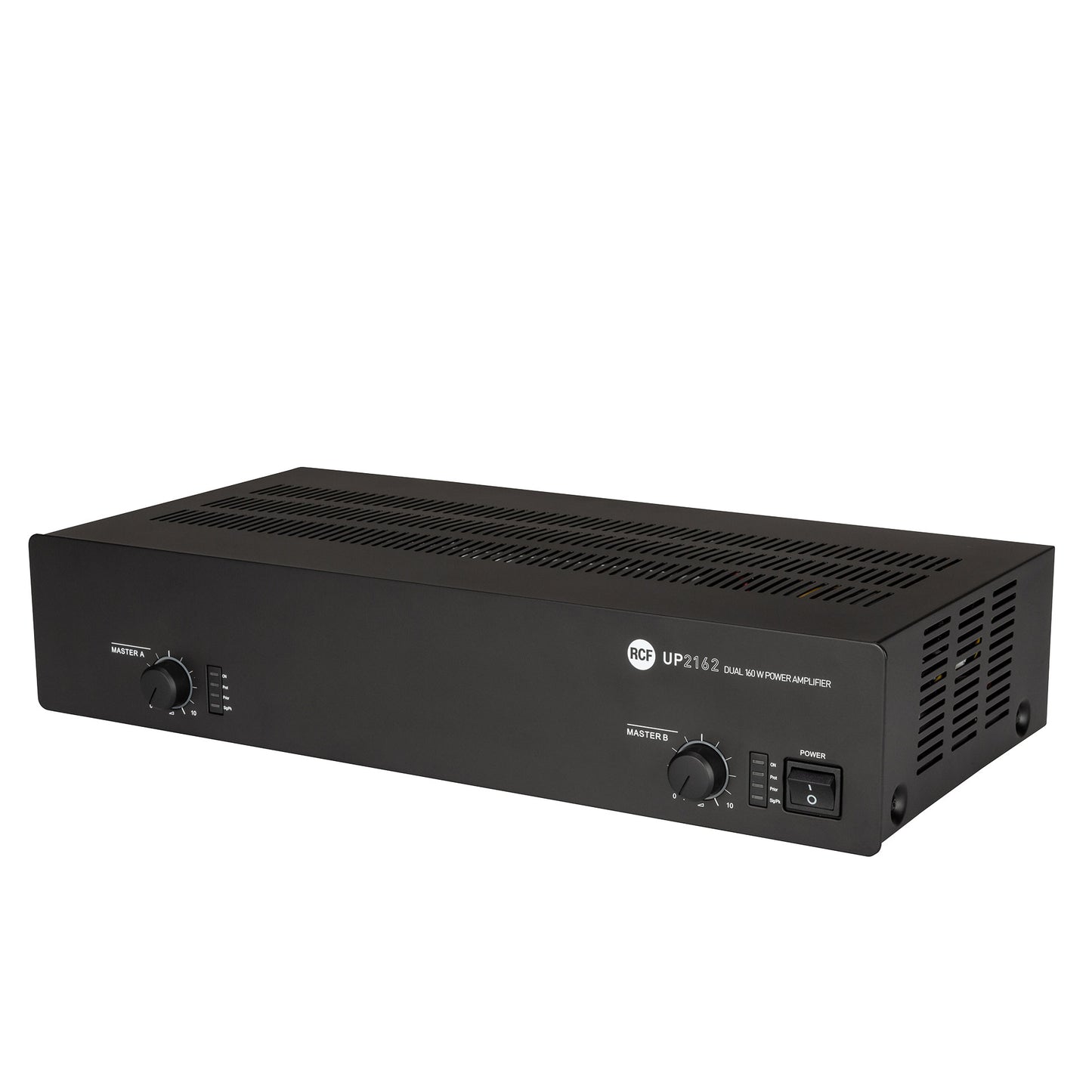

RCF UP-2162 2 Channel Amplifier (70V/ 4 ohm/ Aux Input)

SKU: UP-2162
Regular price $1,099.00
Regular price -21% $1,399.00 Sale price $1,099.00
UP 2162
POWER AMPLIFIER
  • POWER AMPLIFIER DESIGNED FOR THE TRANSMISSION OF ANNOUNCEMENTS AND / OR MUSICAL PROGRAMMES
  • MAIN INPUT ON REMOVABLE CONNECTOR
  • AUX INPUT FOR MUSIC SOURCES REMOVABLE CONNECTOR
  • CONTROLS FOR TREBLE, BASS AND GAIN ON THE AUX INPUT
  • Power Amplifier designed for the transmission of announcements and / or musical programmes
  •  Main input on removable connector
  •  AUX Input for music sources removable connector
  •  Controls for treble, bass and Gain on the AUX Input
  •  Main Input can have priority over the Aux Input (by means of an external command linked to the removable connector)
  •  Output speaker available either for low impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line
  •  Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)
UP 2162 is a device with 2 separated and independent 160 W amplifiers, each having 2 audio inputs, of which one with priority function through a closing contact. Both the audio inputs are at ‘line’ level: for pre-amplified signals or music sources (e.g. CD players, tuners, etc.).The amplifier output is available either for low impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line (for loudspeakers having 100 – 70 V transformers). The amplifier is Class D with switching power supply; the overall weight is extremely reduced plus it offers a wide audio bandwidth quality.
SPECIFICATIONS
Amplifier specifications
NUMBER OF CHANNELS:
2

POWER OUTPUT PER CHANNEL (@ 4 OHM):
160 W RMS

POWER OUTPUT (HI-Z):
160 W RMS

FREQUENCY RESPONSE (-3DB):
50 Hz ÷ 16 kHz

SIGNAL/NOISE RATE (”A” WEIGHTED):
>80 dB

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.3 %
Input section
BALANCED:
4

GENERAL PURPOSE INPUTS (GPI):
4

LINE CONNECTORS:
Euroblock

LINE INPUTS:
4

MONO:
2

STEREO:
2

TOTAL NUMBER OF INPUTS:
4
Output section
POWER OUTPUT CONNECTORS:
Euroblock
Processing
TONE CONTROLS:
Yes
Controls
CONFIGURATION:
Front panel

PRIORITY:
Yes
Protections
COOLING:
Convection

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60Hz

VOLTAGE SELECTION:
Internal

POWER CONSUMPTION:
700 W
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
19", 2U
Size
DEPTH:
230 mm / 9.06 inches

HEIGHT:
88 mm / 3.46 inches

WEIGHT:
7.22 kg / 15.92 lbs

WIDTH:
442 mm / 17.4 inches
Shipping informations
PACKAGE DEPTH:
500 mm / 19.69 inches

PACKAGE HEIGHT:
200 mm / 7.87 inches

PACKAGE WEIGHT:
8.7 kg / 19.18 lbs

PACKAGE WIDTH:
330 mm / 12.99 inches
