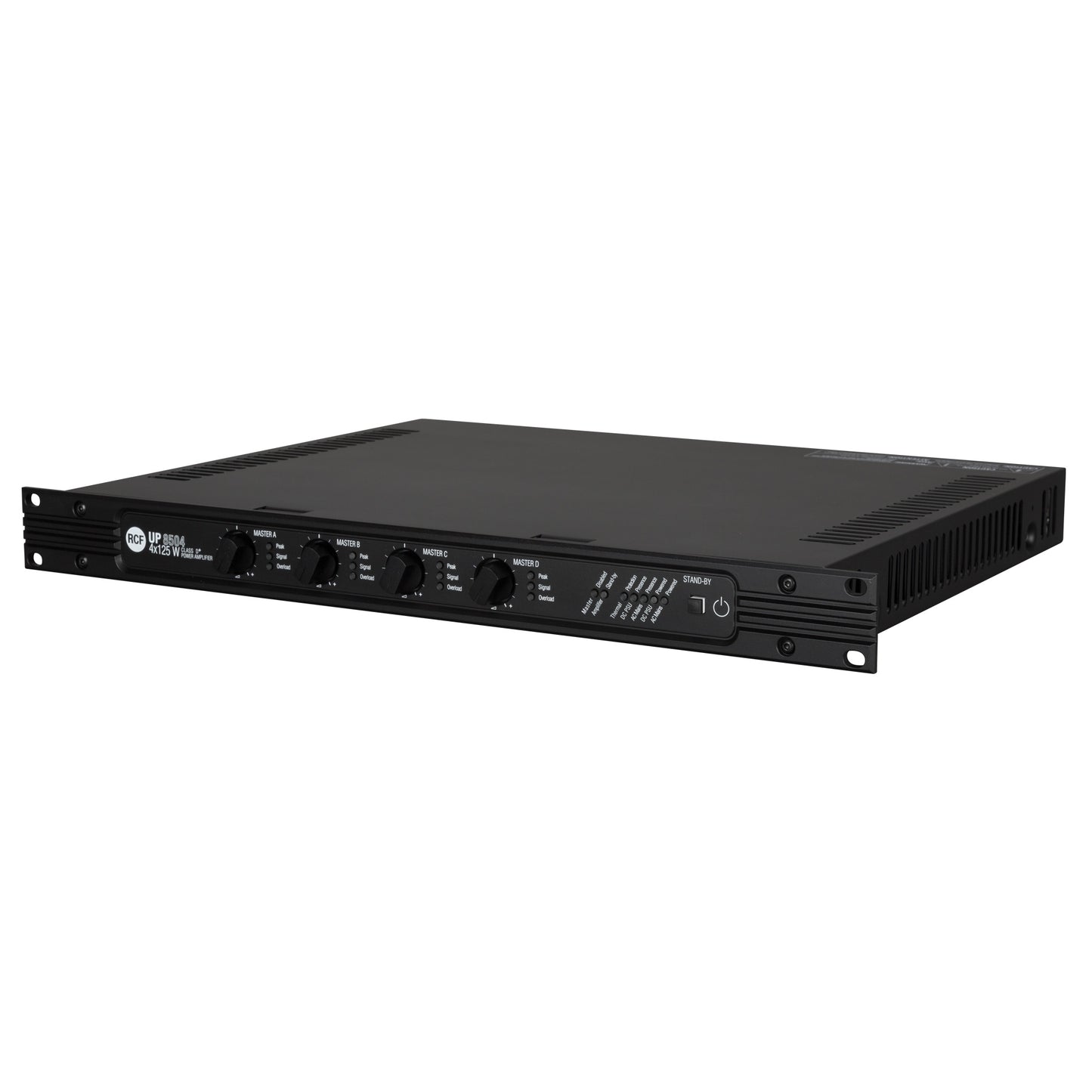

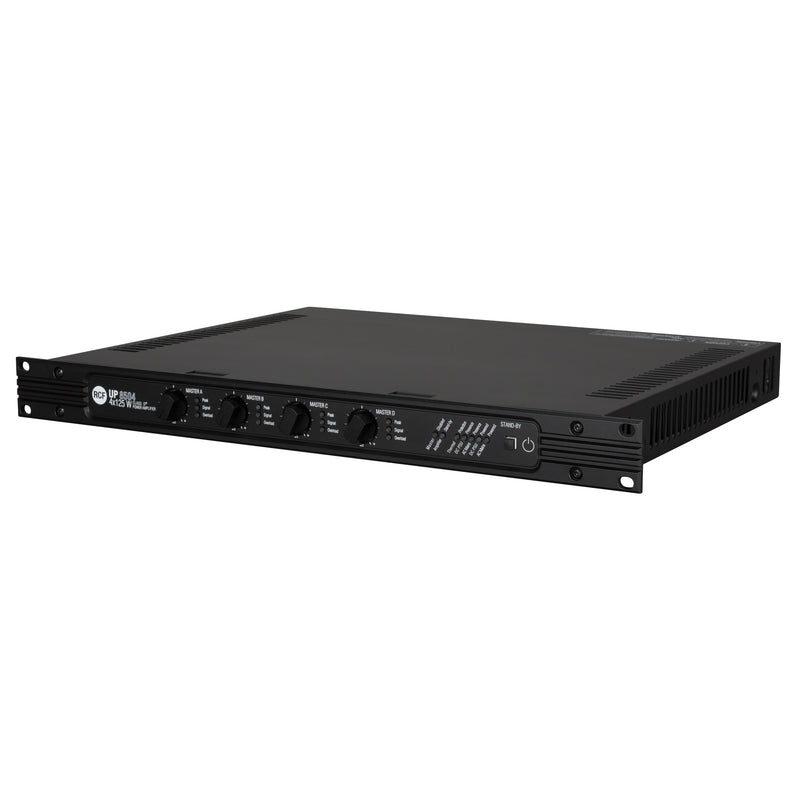

RCF UP-8504 Power Amplifier Class D (70V/ 4 ohm/ Dual Input per Channel)

SKU: UP-8504
$1,999.00 inc. VAT
-20% $2,499.00 $1,999.00 inc. VAT
UP 8504
POWER AMPLIFIER
  • 4 X 125 W POWER AMPLIFIER
  • 2 INPUTS PER CHANNEL
  • DUAL AC AND DC POWER SUPPLY
  • PRIORITY CIRCUIT
  • 4 x 125 W power amplifier
  • 2 inputs per channel
  • Dual AC and DC power supply
  • Priority circuit
  • No output lines tranformers
  • Status LEDs on front panel
The UP 8500 series power amplifiers are designed with an innovative RCF power supply and amplification technology. The full digital technology allows merging extremely high efficiency both with AC and DC power supply, pro audio quality reproduction and compactness. All UP 8500 series power amplifiers are certified according to EN 54-16 standard in combination with DXT 7000 Voice Alarm system.
SPECIFICATIONS
Amplifier specifications
AMPLIFIER CLASS:
D

NUMBER OF CHANNELS:
4

POWER OUTPUT (HI-Z):
500 W RMS

FREQUENCY RESPONSE (-3DB):
40 Hz ÷ 16 Hz

SIGNAL/NOISE RATE (”A” WEIGHTED):
>86 dB dB

CROSSTALK (@ 1 KHZ):
<60 dB dB

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.3 %%
Input section
BALANCED:
8

GENERAL PURPOSE INPUTS (GPI):
6

LINE CONNECTORS:
Euroblock

LINE INPUTS:
8

MONO:
4

STEREO:
4

TOTAL NUMBER OF INPUTS:
8
Output section
POWER OUTPUT CONNECTORS:
Euroblock

GENERAL PURPOSE OUTPUTS (GPO):
1
Controls
CONFIGURATION:
DIP switch, Front panel

PRIORITY:
Yes
Protections
COOLING:
Forced

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60HzV ~ Hz

VOLTAGE SELECTION:
Internal

DC POWER:
Yes

DC POWER VALUE:
48 V

POWER CONSUMPTION:
800 W
Standard compliance
CE MARKING:
Yes

EN54-16 CERTIFIED:
Yes

CPR NUMBER:
1438-CPR-0241
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
19", 1U
Size
DEPTH:
375 mm / 14.76 inches

HEIGHT:
44 mm / 1.73 inches

WEIGHT:
5.4 kg / 11.9 lbs

WIDTH:
482 mm / 18.98 inches
Shipping informations
PACKAGE DEPTH:
480 mm / 18.9 inches

PACKAGE HEIGHT:
170 mm / 6.69 inches

PACKAGE WEIGHT:
7.4 kg / 16.31 lbs

PACKAGE WIDTH:
575 mm / 22.64 inches
