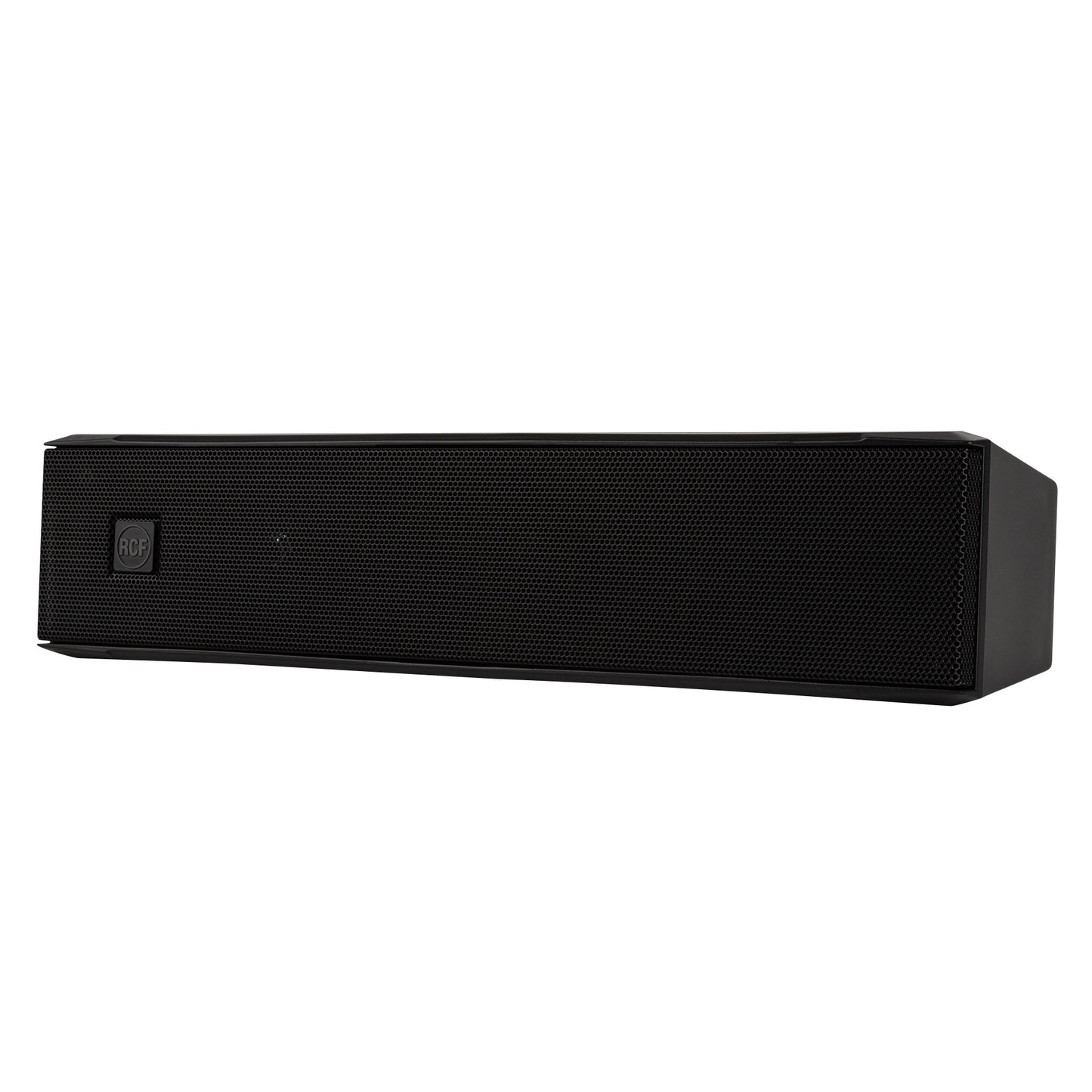

RCF WMF33-EN Passive 2-way Wall Mount Speaker (EN54-24) 100V

SKU: WMF33-EN
$269.00 inc. VAT
-46% $499.00 $269.00 inc. VAT
WMF 33EN
TWO-WAY WALL MOUNT SPEAKER
  • 2 X 3" FULL-RANGE TRANSDUCERS WITH 1" DOME TWEETER
  • POWER SELECTABLE (70 V / 100 V): 40 W – 20 W – 10 W – 5 W – 2.5 W
  • 88 DB SENSITIVITY
  • COLOUR BLACK RAL 9005
  • 2 x 3" full-range transducers with 1" dome tweeter
  • Power selectable (70 V / 100 V): 40 W – 20 W – 10 W – 5 W – 2.5 W
  • 88 dB sensitivity
  • Colour black RAL 9005
  • Voice Alarm EN 54-24 Certified
  • In/out ceramic terminal block
  • Thermal fuse protection
  • Connections integrated in the wall support
  • UL rated plastic enclosure
WMF 33EN is a two-way wall mount speaker designed for both horizontal and vertical installation. It is especially suitable for broadcasting background music into commercial spaces, but also includes alarm messages with highly intelligible voice reproduction and EN 54-24 certification. It features a UL rated plastic cabinet with a steel magnetic grille and is easy to install with its smart support system. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
80 Hz ÷ 22000 Hz

MAX SPL @ 1M:
105 dB

MAX SPL @ 4M:
93 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
160°

SYSTEM SENSITIVITY:
88 dB

SYSTEM SENSITIVITY 1W @ 4M:
76 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
40 W RMS

PEAK POWER HANDLING:
160 W PEAK

RECOMMENDED AMPLIFIER:
80 W

PROTECTIONS:
Thermal fuse - PTC

CROSSOVER FREQUENCIES:
2500
Transducers
DOME TWEETER:
1.0'' neo, 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
15 W AES, 30 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
90 dB, 1W @ 1m

WOOFER:
2 x 3.0'', 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
16 ohm

INPUT POWER RATING:
20 W AES, 40 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
85 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Ceramic screw terminals

OUTPUT CONNECTORS:
Ceramic screw terminals

CONSTANT VOLTAGE TRANSFORMER:
70/100 V

POWER SELECTION 1 (100 V):
40 W - 250 ohm

POWER SELECTION 2 (100 V):
20 W - 500 ohm

POWER SELECTION 3 (100 V):
10 W - 1000 ohm

POWER SELECTION 4 (100 V):
5 W - 2000 ohm

POWER SELECTION 5 (100 V):
2.5 W - 4000 ohm
Standard compliance
CPR NUMBER:
0068/CPR/057-2019

EN54-24 CERTIFIED:
Yes

CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005

HARDWARE:
Wall mount bracket

GRILLE:
Steel

CABINET/CASE MATERIAL:
ABS
Size
WIDTH:
92 mm / 3.62 inches

DEPTH:
236 mm / 9.29 inches

HEIGHT:
399 mm / 15.71 inches

WEIGHT:
5 kg / 11.02 lbs
Shipping informations
PACKAGE WEIGHT:
7 kg / 15.43 lbs

PACKAGE DEPTH:
276 mm / 10.87 inches

PACKAGE WIDTH:
596 mm / 23.46 inches

PACKAGE HEIGHT:
186 mm / 7.32 inches
