Home » RCF WMR-50T 5" Two Way Wall Mount Monitor Speaker w/Transformer (Blk) 40w
RCF

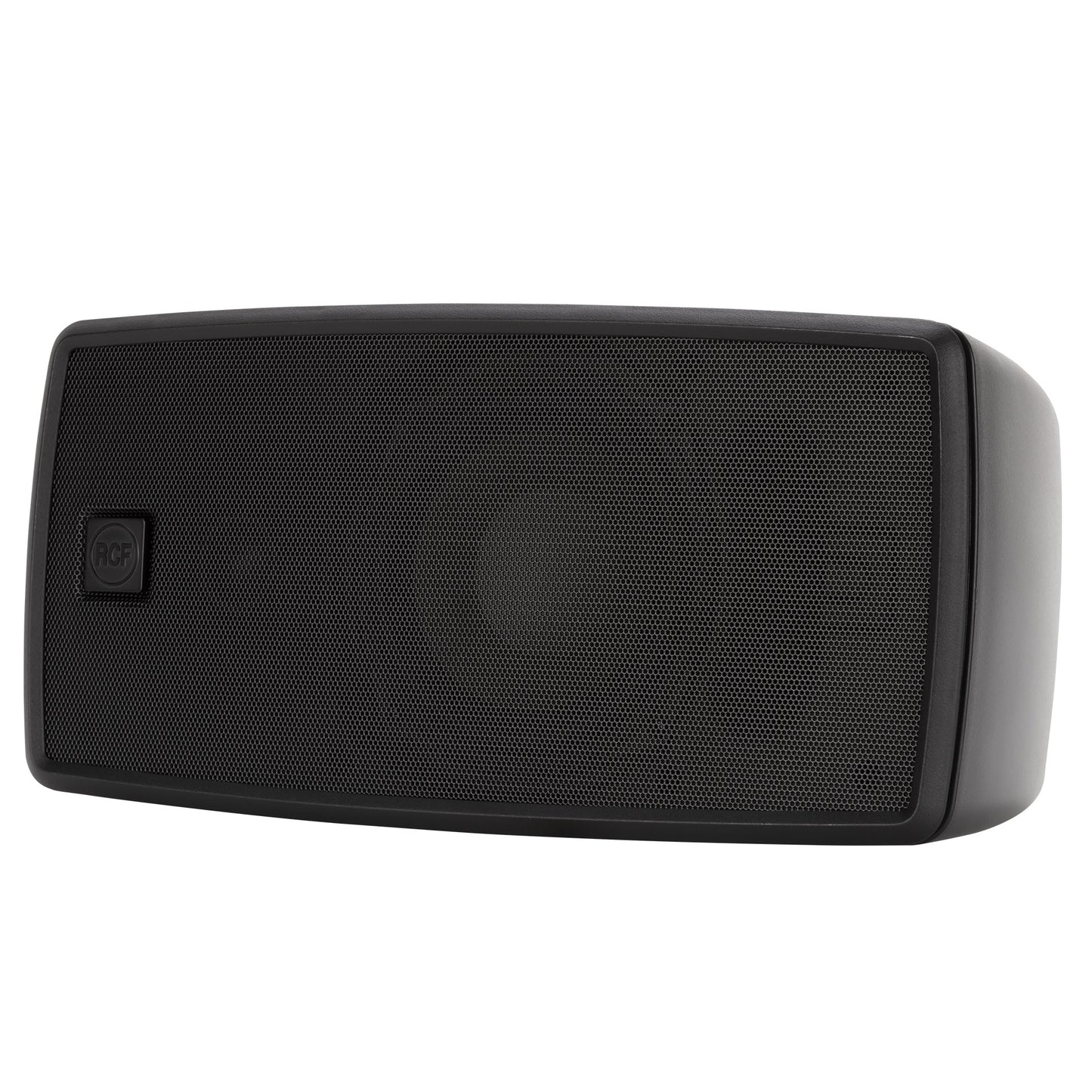

RCF WMR-50T 5" Two Way Wall Mount Monitor Speaker w/Transformer (Blk) 40w

SKU: WMR-50T
$249.00 inc. VAT
-24% $329.00 $249.00 inc. VAT
WMR 50T
TWO-WAY WALL-MOUNT MONITOR SPEAKER
  • 40W RMS POWER HANDLING
  • 110 DB MAX SPL
  • SELF-EXTINGUISHING PLASTIC CABINET AND STEEL FRONT GRILLE
  • CONNECTION BOARD INTEGRATED INTO THE WALL SUPPORT
  • 40W RMS power handling
  • 110 dB max SPL
  • 80 ÷ 20000 Hz frequency range
  • 140° x 100° constant directivity coverage angle
  • 5" high power woofer
  • 1" neodymium dome tweeter
  • Self-extinguishing plastic cabinet and steel front grille
  • Connection board integrated into the wall support
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
  • 5 different power levels selectable
WMR 50T is a multipurpose two-way wall-mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 50T pairs any building's aesthetic. The high-quality transducers guarantee a precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally quickly connect it without the need for any tooling.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
80 Hz ÷ 20000 Hz

MAX SPL @ 1M:
110 dB

HORIZONTAL COVERAGE ANGLE:
140°

VERTICAL COVERAGE ANGLE:
100°

SYSTEM SENSITIVITY:
88 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
40 W RMS

PEAK POWER HANDLING:
160 W PEAK

RECOMMENDED AMPLIFIER:
80 W

CROSSOVER FREQUENCIES:
2500 Hz
Transducers
DOME TWEETER:
1.0'' neo, 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
15 W AES, 30 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
91 dB, 1W @ 1m

WOOFER:
5.0'', 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
40 W AES, 80 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
88 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock

CONSTANT VOLTAGE TRANSFORMER:
70/100 V

POWER SELECTION 1 (100 V):
40 W - 250 ohm

POWER SELECTION 2 (100 V):
20 W - 500 ohm

POWER SELECTION 3 (100 V):
10 W - 1000 ohm

POWER SELECTION 4 (100 V):
5 W - 2000 ohm

POWER SELECTION 5 (100 V):
2.5 W - 4000 ohm
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005

HARDWARE:
Wall mount bracket

GRILLE:
Aluminium

CABINET/CASE MATERIAL:
ABS
Size
WIDTH:
349 mm / 13.74 inches

DEPTH:
253 mm / 9.96 inches

HEIGHT:
175 mm / 6.89 inches

WEIGHT:
4.6 kg / 10.14 lbs
Shipping informations
PACKAGE WEIGHT:
6.1 kg / 13.45 lbs

PACKAGE DEPTH:
308 mm / 12.13 inches

PACKAGE WIDTH:
418 mm / 16.46 inches

PACKAGE HEIGHT:
278 mm / 10.94 inches
