Home » RCF WMR-60T 6" Two Way Wall Mount Monitor Speaker w/Transformer (Blk) 80w
RCF

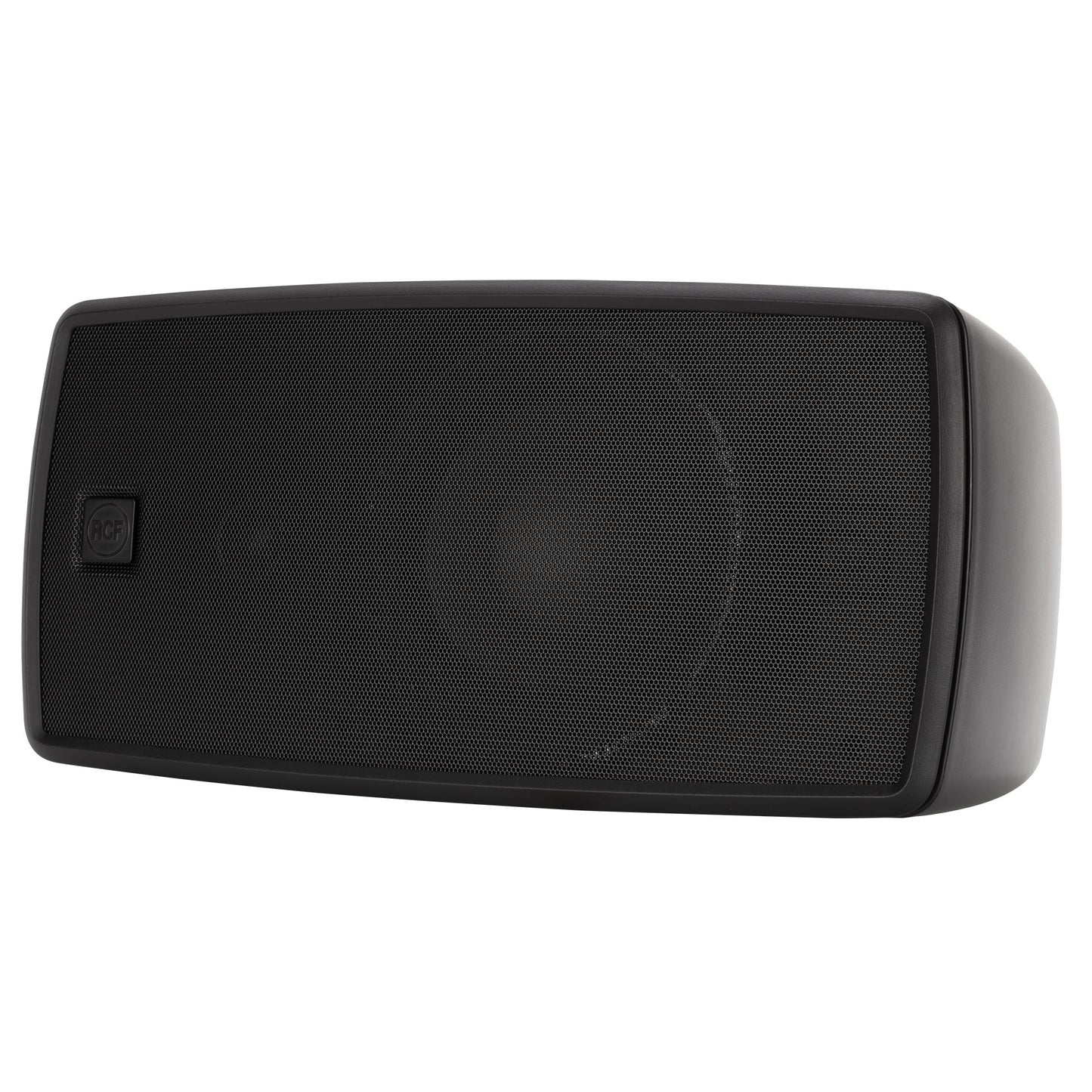

RCF WMR-60T 6" Two Way Wall Mount Monitor Speaker w/Transformer (Blk) 80w

SKU: WMR-60T
$269.00 inc. VAT
-23% $349.00 $269.00 inc. VAT
WMR 60T
TWO-WAY WALL-MOUNT MONITOR SPEAKER
  • 80W RMS POWER HANDLING
  • 114 DB MAX SPL
  • SELF-EXTINGUISHING PLASTIC CABINET AND STEEL FRONT GRILLE
  • CONNECTION BOARD INTEGRATED INTO THE WALL SUPPORT
  • 80W RMS power handling
  • 114 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 140° x 100° constant directivity coverage angle
  • 6.5" high power woofer
  • 1" neodymium dome tweeter
  • Self-extinguishing plastic cabinet and steel front grille
  • Connection board integrated into the wall support
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
  • 5 different power levels selectable
WMR 60T is a multi-purpose two-way wall mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 60T is appropriate in any environmental and architectural condition. The high quality of the transducers guarantees a faithful and precise music reproduction in the whole frequency band, and allows reaching truly remarkable sound pressure levels for such compact product. The installation is easy and safe thanks to the dedicated connection board integrated inside the wall mount accessory (included), that allows the installer to cable the speaker first, and then fix it on the support without need of any tooling.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
70 Hz ÷ 20000 Hz

MAX SPL @ 1M:
114 dB

HORIZONTAL COVERAGE ANGLE:
140°

VERTICAL COVERAGE ANGLE:
100°

SYSTEM SENSITIVITY:
89 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
80 W RMS

PEAK POWER HANDLING:
320 W PEAK

RECOMMENDED AMPLIFIER:
1600 W

CROSSOVER FREQUENCIES:
2500 Hz
Transducers
DOME TWEETER:
1.0'' neo, 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
15 W AES, 30 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
91 dB, 1W @ 1m

WOOFER:
6.5'', 1.2'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
80 W AES, 160 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
89 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock

CONSTANT VOLTAGE TRANSFORMER:
70/100 V

POWER SELECTION 1 (100 V):
80 W - 125 ohm

POWER SELECTION 2 (100 V):
40 W - 250 ohm

POWER SELECTION 3 (100 V):
20 W - 500 ohm

POWER SELECTION 4 (100 V):
10 W - 1000 ohm

POWER SELECTION 5 (100 V):
5 W - 2000 ohm
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005

HARDWARE:
Wall mount bracket

GRILLE:
Aluminium

CABINET/CASE MATERIAL:
ABS
Size
WIDTH:
403 mm / 15.87 inches

DEPTH:
293 mm / 11.54 inches

HEIGHT:
193 mm / 7.6 inches

WEIGHT:
6 kg / 13.23 lbs
Shipping informations
PACKAGE WEIGHT:
7.5 kg / 16.53 lbs

PACKAGE DEPTH:
482 mm / 18.98 inches

PACKAGE WIDTH:
352 mm / 13.86 inches

PACKAGE HEIGHT:
312 mm / 12.28 inches
